Ecran display OLED 0.96 inch 64×128 SSD1107

Tip interfata IIC

Pin definition: GND, V33, SCL, SDA

1:GND(OLED power supply)

2:V33 (OLED 3.3V)

3:SCL(OLED IIC Clock line)

4:SDA(OLED IIC Cable)

Driver chip: SH1107

Support interface: IIC

Resolution: 64×128

Display size: 0.96"

Display color: white light

OLED mode: positive

Operating temperature: -40°C~70°C

Storage temperature: -40°C~85°C

Operating voltage: 3.3v

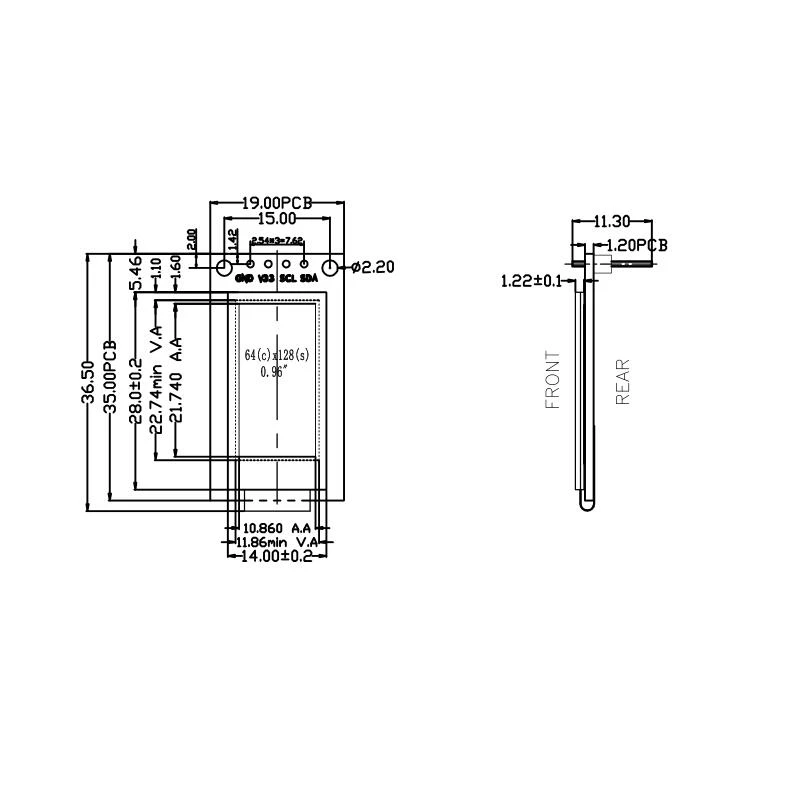

Module size: 36.5mm×19mm×11.3mm

Visible area: 22.74mm×11.86mm

Effective area: 21.74mm×10.86mm

Point distance: 0.17mm×0.17mm

Point size: 0.15mm×0.15mm
