ecran display 3.2" XD HMI USART GPU Mărește

Ecran display 3.2" Nextion XD HMI USART GPU serial cu Touch screen NX4024T032

hmi32

New product

Ecran display 3.2" Nextion XD HMI USART GPU serial cu Touch screen NX4024T032

More details

This product is no longer in stock

315,00 lei

Informații

Ecran display lcd 3.2" NEXTION XD HMI USART GPU cu touch screen si interfata seriala

Ecranul este compatibul cu orice interfata seriala.

Rezoluție 320 x 240

RGB 65K culori naturale
Ecran TFT integrat cu 4 fire si Touch Panel rezistiv
Memorie 4M
Slot pentru micro-card SD pentru actualizare firmware si stocare date
Luminozitate reglabila: 0 ~ 180
Conusm 5V 65mA

Pachetul contine :

1 X ecran 3.2" hmi usart cu touch screen

1 X cablu de conectare

1 X sursa adaptoar 5V

Description

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

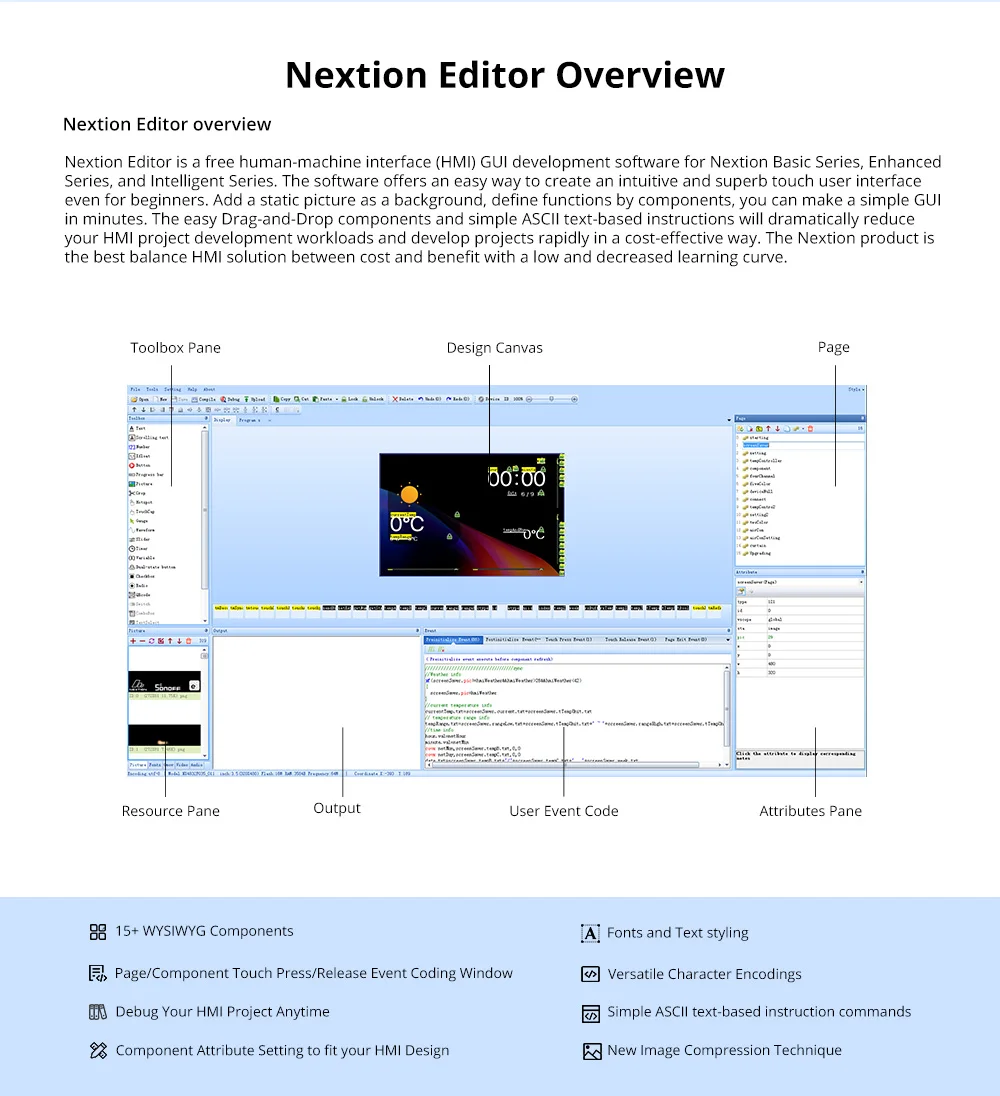

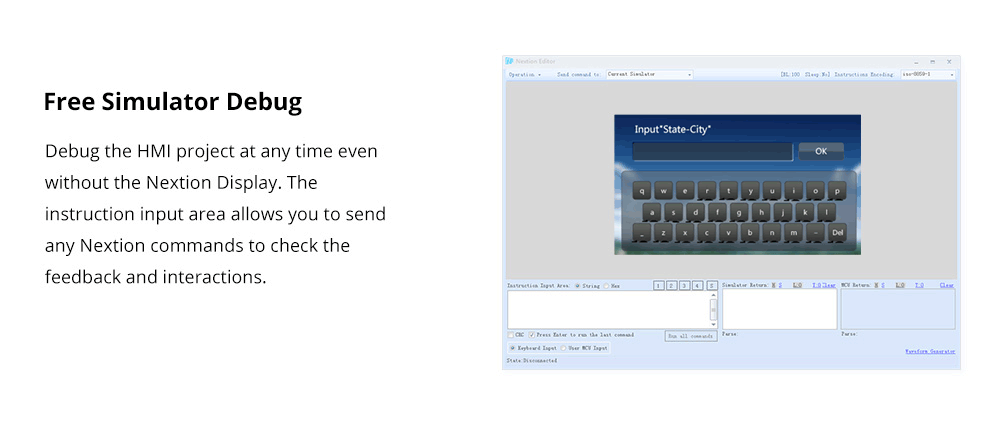

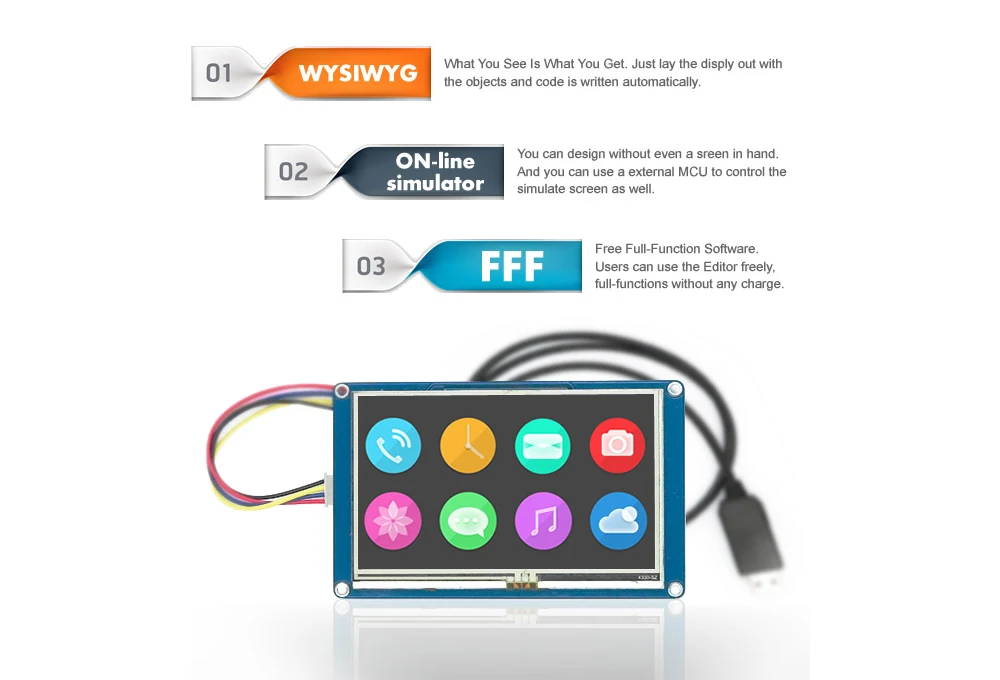

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NX4024T032 is a powerful 3.2'' HMI, which is member of Nextion family. Features include: a 3.2" TFT 400x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

3.2" Nextion NX4024T032 HMI TFT Intelligent Display Module

Package include: a Nextion 3.2'' display, a wire, a power supply test board

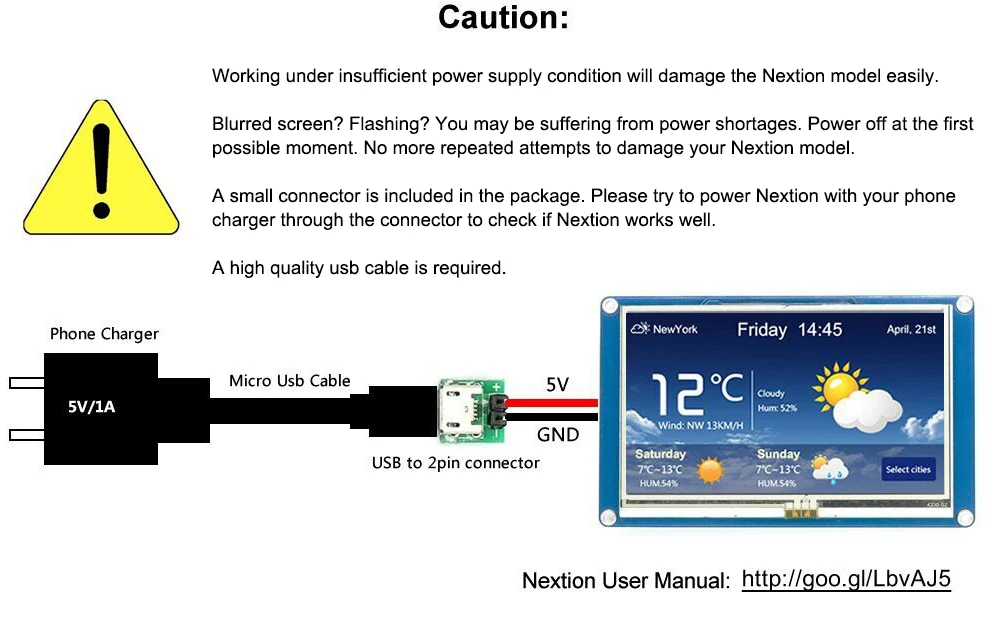

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Check out the amazing features of this product below.



Features

  • 400 x 240 Resolution
  • RGB 65K true to life colours

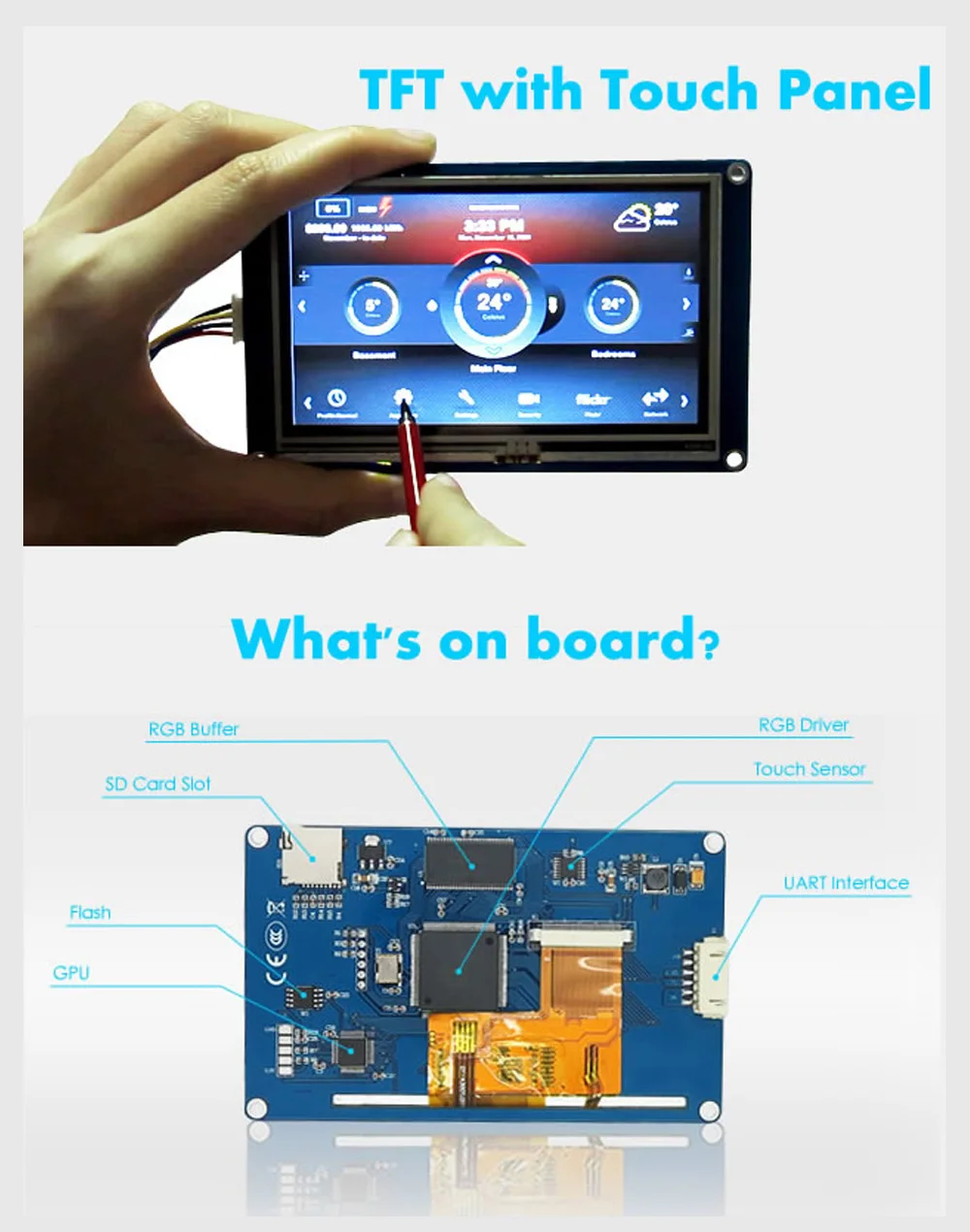

  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • On board micro-SD card for firmware upgrade
  • Visual Area:69.60mm(L)×41.76mm(W)
  • Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
  • 5V85mA power conusmption
  • CE/EMC, RoHS certified (certificates)

Software
