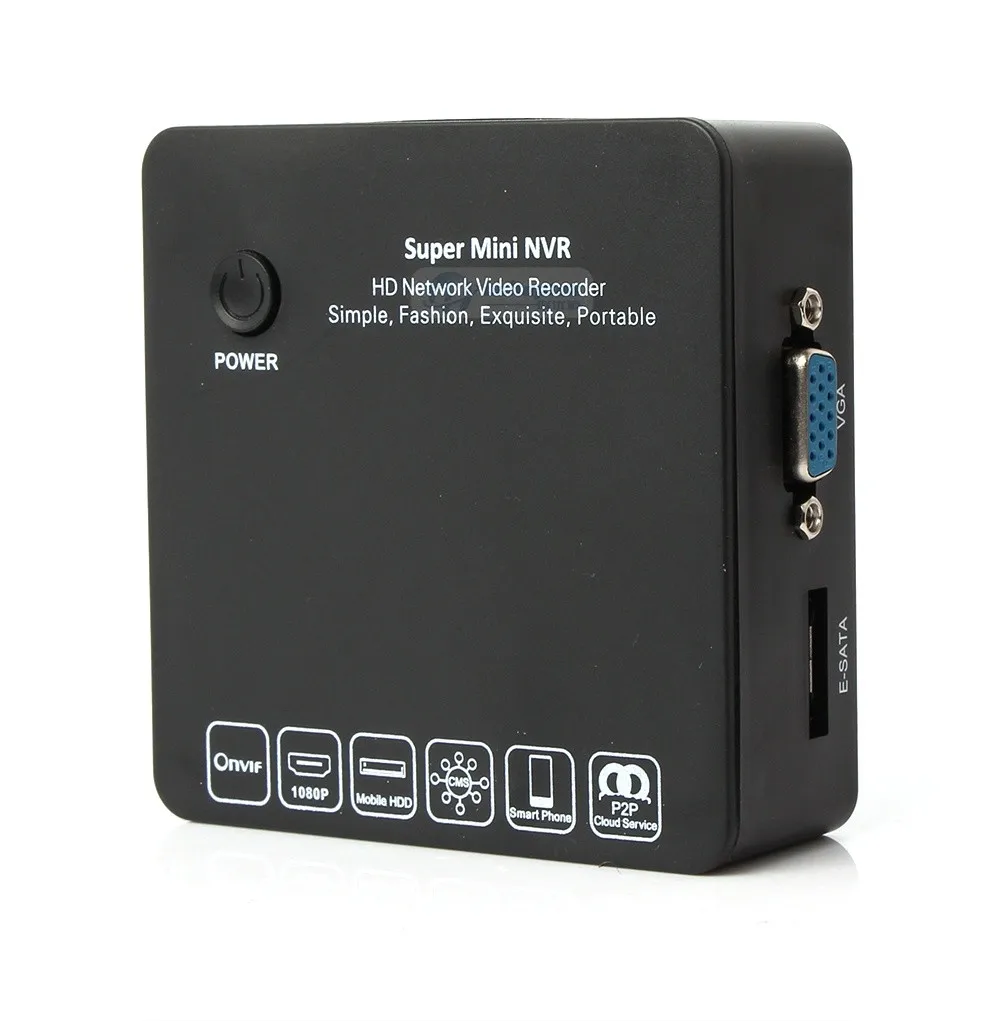

Mini NVR 8 Canale Full HD Network Video Recorder 1080P/960P/720P Onvif HDMI E-SATA USB

 Model Number

 T8300-4F/T8300-8F

 Operating System

 Embedded LINUX operating system

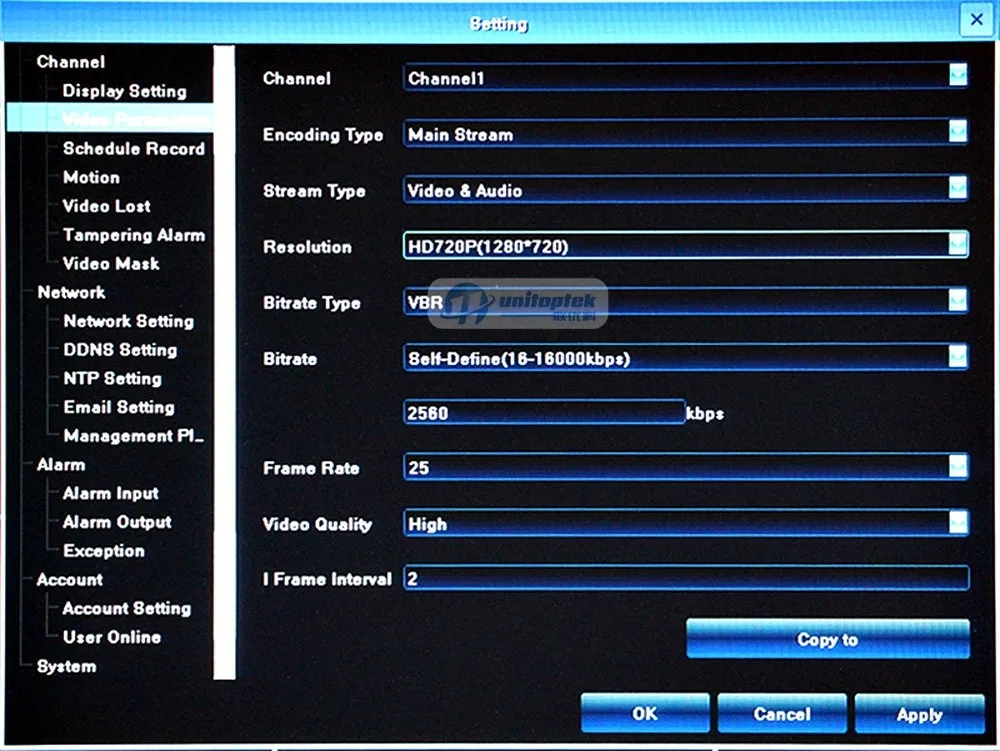

 Image Code Control

 Image code quality adjustable, variable bitstream and

 constant bitstream optional

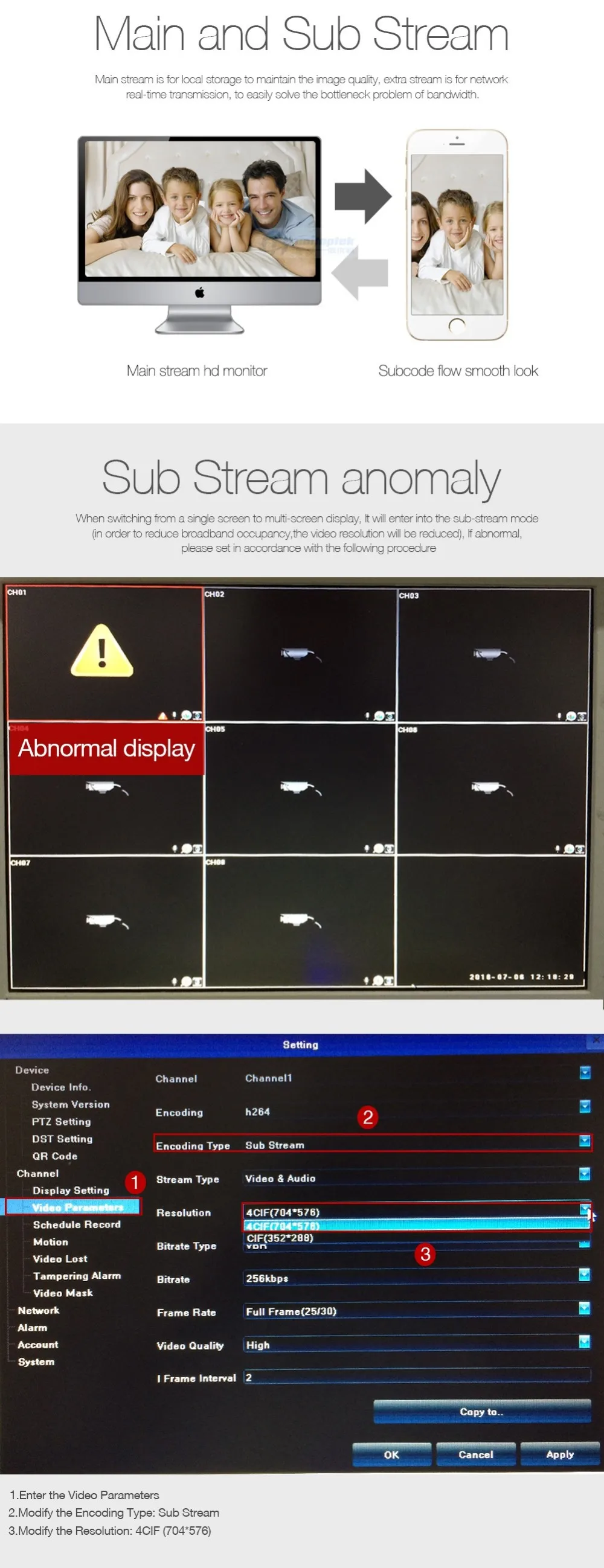

 Dual Stream

 Each channel can set main stream and sub stream

 Video Standard

 1080P(19201080)30fps/960P/(1280x960)/720P(1280x720)30fps

 Monitoring Image

        Quality

1080P(1920x1080) / 960P/(1280x960)/720P(1280x720)

 Recording Playback

          Quality

 8ch 720P/960P Model: 4ch simultaneously Playback, 8ch 1080P Model: 1ch 1080P

 Region Cover

 Every channel can set 4 cover regions(IPC Support)

 Recording Mode

 Support manual , auto, dynamic detection, alarm trigger

 record mode(Partly needs IPC Support)

 Backup Way

 Support U disk, USB mobile HDD, USB DVD-RW, network

 storage and backup

 Operation Way

 Mouse

 Local Login

 User name and password

 Recording Storage

 Local HDD, network

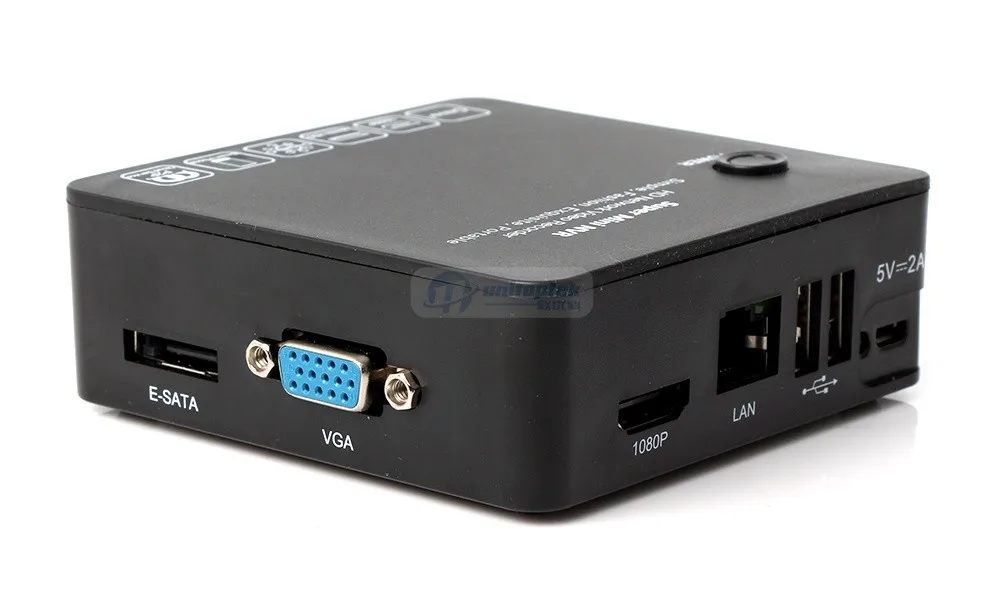

External

  Ports

 Video Input

 ① 8×(1280*720)+sub[640*360]+1Ref.
+4Play 8ch 1MP IP camera
③ 8×(1280*960)+sub[640*480]+4Ref.
+1Play 8ch 1.3MP IP camera
④ 8×(1920*1080)+sub[640*480]+2Ref.
+1Play 8ch 2MP IP camera
⑤ 8×(720*576)+sub[352*288]+2Ref.
+8Play 8ch 0.4MP IP camera

 Audio Input

 (Partly needs IPC Support)

 Video Output

 1ch VGA+1ch HDMI

 Network Port

 1 RJ45,10M/100M self-adaptive LAN port

 USB Port

 2 USB 2.0 ports

 HDD

 Mobile HDD/E-SATA/USB Disk

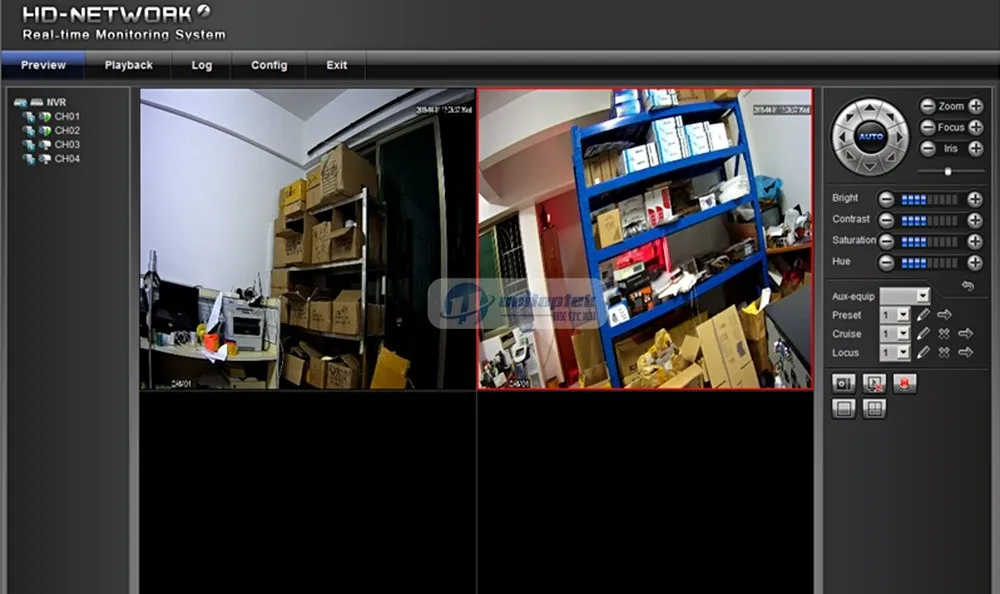

 Mobile Surveillance

 Support( iPhone, Windows Mobile, BlackBerry, Symbian,

 Android) smart phone

 Power Supply

 5V 2A

 Power Consumption

 ≤10W(without HDD)

 Working Temperature

 -10~+55

 Working Humidity

 10%-90%

 Dimension

 Equipment:88mmx88mmx32mm,

 Packing:185.5mmx115.5mmx36mm

 Weight(without HDD)

 N.W.: 105g; With packing:250

 Outside Carton

 30 pcs/carton. 365mmx350mmx188mm; Weight: 8kg

  Installation Way

 Desktop Installation
