Preț redus! Ecran display LCD 7" cu touch screen si iesire HDMI alimentare mini USB 5v Mărește

Ecran display LCD 7" cu touch screen si iesire HDMI alimentare mini USB 5v

7inchhdmi5v

New product

Ecran display LCD 7" cu touch screen si iesire HDMI alimentare mini USB 5v

More details

305,00 lei

-30,00 lei

335,00 lei

Informații

1. Ecran standard de 7 inchi, rezoluție ultra clară 1024 x 600.

2. Ecran tactil capacitiv pentru atingere maximă în 5 puncte. Vă permite pentru a glisa, derula, selecta, mări și mări pe ecran doar 3 până la 5 ms.

3. Suportă control independent al iluminării de fundal, iluminarea de fundal poate fi activată oprit pentru a economisi energie.

4. Suport standard de intrare interfață HD, compatibil și poate fi introdus direct în pentru Raspberry Pi (3 generații/2 generații/1 generație).

5. Poate fi folosit ca afișaj HD de uz general, cum ar fi un computer HD ca afișaj secundar (ieșirea de rezoluție poate fi ajustată la 1024x600).

6. Folosit ca afișaj pentru Raspberry Pi, suport pentru Raspbian / Ubuntu / Kodi / IOT, o singură atingere, drive gratuit.

7. Folosit ca monitor de computer, suporta win7 / win8 / win10 sistem de atingere în 5 puncte

8. interfata HDMI

9. alimentare 5v USB

Product Introduction

7inch standard display with hardware resolution of 1024 × 600,resolution can be configured through software (up to 1920 supported) × 1080)
Capacitive touch screen,supporting up to 5 touch points
Supports separate control of backlight,which can be turned off to save power consumption

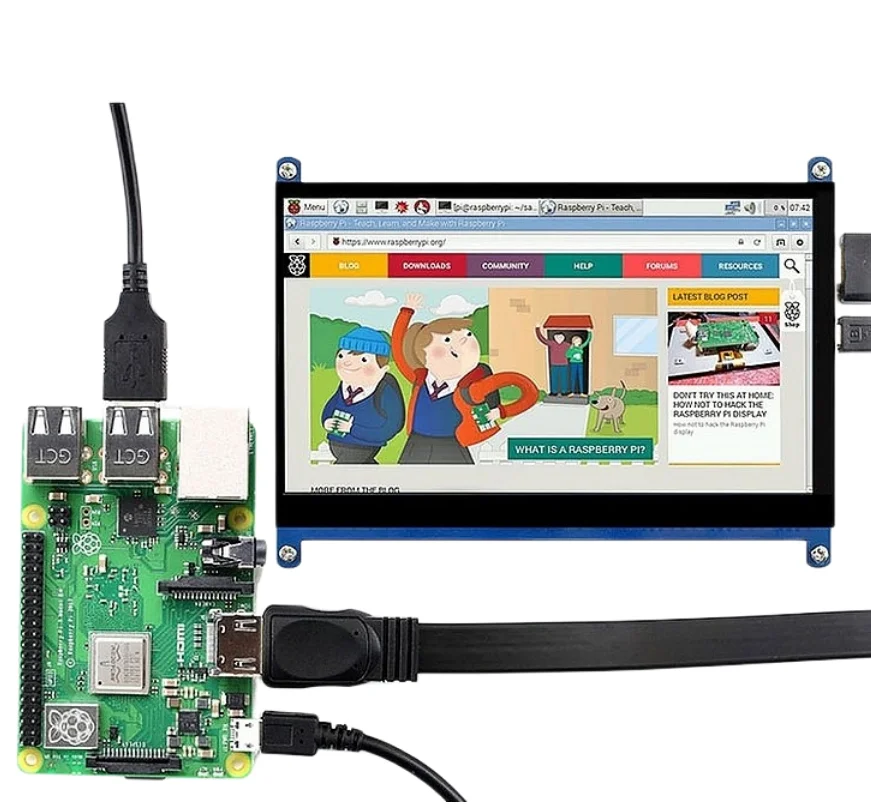

Support mainstream mini PCs such as Raspberry Pi,BB Black,Banana Pi,etc
Can be used as a universal HDMI display,such as connecting to a computer HDMI as a secondary display
Used as a raspberry pie monitor,supporting Raspbian,Ubuntu,Kodi,win10 IOT,single touch,no drive
Used as a computer monitor,supporting 5-point touch (single point touch for XP and older systems) for Windows 7,Windows 8,and Windows 10 systems,without drive
This product has passed CE and RoHS certification


Features and Specs

Panel material: IPS / TN touch screen

Native Resolution: 1024 x 600

Power Consumption: 800mA @ 5V

Plug-and-Play Touchscreen: Capacitive USB-enabled touch controller

Raspberry Pi Friendly: Support all RPi models (Pi Zero requires an extra adapt-er)

Touchscreen Monitor: Work as a com-pact monitor with a USB touchscreen controller

Backlight Control: On-board mode switch button for turning on/off the LCD backlight

Free Driver



Description

Report Item

7 inch Raspberry Pi Display Touch Screen LCD 1024*600 HDMI TFT Monitor + Case Compatible Raspberry Pi 4 Model B/3B+/3B support Nvidia Jetson Nano PC/Laptop Driver Free

Specification :

1. Size: 7.0 inch

2. Resolution: 1024 × 600

3. Touch: five-point capacitive touch

4. Product Size: 164.9*124.27 (mm)

5. Weight(Package containing): 405 (g) approx

6. Power Dissipation: 0.84A*5V

Package list :

1 x 1024*6000 Tou

Product Introduction
7inch standard display with hardware resolution of 1024 × 600,resolution can be configured through software (up to 1920 supported) × 1080)
Capacitive touch screen,supporting up to 5 touch points
Supports separate control of backlight,which can be turned off to save power consumption
Support mainstream mini PCs such as Raspberry Pi,BB Black,Banana Pi,etc
Can be used as a universal HDMI display,such as connecting to a computer HDMI as a secondary display
Used as a raspberry pie monitor,supporting Raspbian,Ubuntu,Kodi,win10 IOT,single touch,no drive
Used as a computer monitor,supporting 5-point touch (single point touch for XP and older systems) for Windows 7,Windows 8,and Windows 10 systems,without drive
This product has passed CE and RoHS certification


Features and Specs

Panel material: IPS / TN touch screen

Native Resolution: 1024 x 600

Power Consumption: 800mA @ 5V

Plug-and-Play Touchscreen: Capacitive USB-enabled touch controller

Raspberry Pi Friendly: Support all RPi models (Pi Zero requires an extra adapt-er)

Touchscreen Monitor: Work as a com-pact monitor with a USB touchscreen controller

Backlight Control: On-board mode switch button for turning on/off the LCD backlight

Free Driver



Description

Report Item

7 inch Raspberry Pi Display Touch Screen LCD 1024*600 HDMI TFT Monitor + Case Compatible Raspberry Pi 4 Model B/3B+/3B support Nvidia Jetson Nano PC/Laptop Driver Free

Specification :

1. Size: 7.0 inch

2. Resolution: 1024 × 600

3. Touch: five-point capacitive touch

4. Product Size: 164.9*124.27 (mm)

5. Weight(Package containing): 405 (g) approx

6. Power Dissipation: 0.84A*5V

Package list :

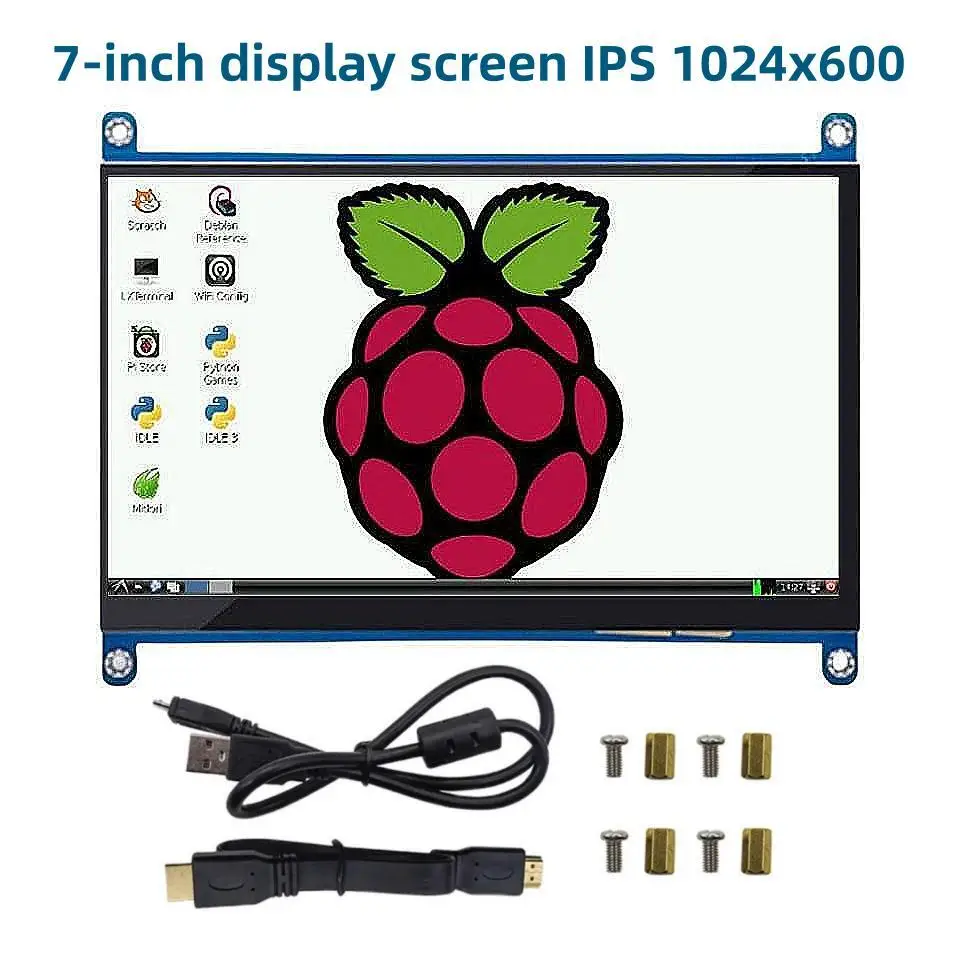

1 x 1024*6000 Touchscreen ips

1 x HDMI Cable

1 x Micro HDMI to HDMI Adapter

1 x USB Cable

1 set x Screws and Nuts

( as following Picture )、


① Backlight power switch: Control the backlight on and off to save power consumption.
② &③ USB touch/power interface: used for power supply and touch output,both functions are the same,only connect either one.
④ HDMI interface: used to connect the motherboard and LCD display screen for HDMI transmission.
S851985036bcc4d6db21a03bd6f274ce0h.jpg Se29729b6e7b54d058f801f1c69f86bcfK.jpg S73174bb7cb9e471680c4fba829952e745.jpg S2264ec6614de4e8dabb82b3c15b30be6V.jpg S8723de8a99224888af85df4860ae4b92J.jpg
Sd14e965b90464f628ef906ecd229e935i.jpg S55a3c045d4a24679baeeb5c9e6b73e94k.jpg S3e1e28eb09bf4b21989fb54fd4cdf179e.jpg Scc49651db78842d5996a9af2c3d30c52M.jpg
