Cititor USB carduri cartele taguri RFID EM4001 EM4100 13.56mhz

Referință cititorrfidusb

Condiție: New product

Informații

Specificație

1. Suporta EM4001, 4100, sau RFID.

2. Frecventa: 125KHz

3. Citeste primele 10 cifre ale cardului

4. Suport Windows95 / 98/2000 / XP / 7

5. Comunicare: 106Kbit / s

6. Alimentare: DC 5V (± 5%)

7. Distanta de citire: 5-8cm

8. Interfata: USB

9. Temperatura de operare: -10 grade Celsius ~ Celsius +70

10. Temperatura de depozitare: -20 grade Celsius ~ Celsius 80

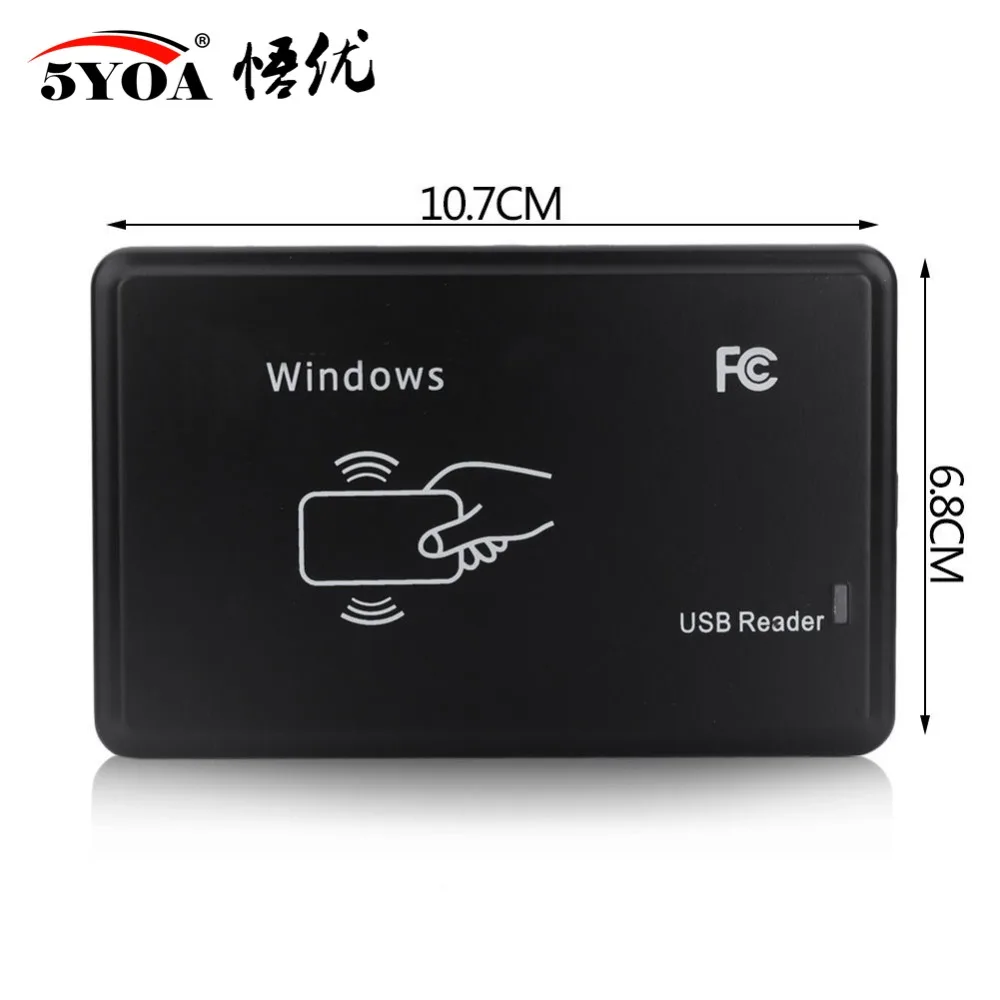

11. Dimensiuni: L x W x H) 10.8x7.8x2.8cm

12. Greutate: 70g. cu cablu USB: 100g

13. Culoare: negru

Instructiuni de instalare

În primul rând: Conectați cablul USB cu cititorul de card la portul USB al computerului.

În al doilea rând: Cititorul va scoate un sunet cand primeste curent, iar apoi o jumătate de secundă scoate alt sunet ceea ce inseamna ca dispozitivul s-a instalat si a facut auto-test.Nu este nevoie sa instalati drivere, Windows îl va recunoaște în mod automat.

În al treilea rând: Deschideți spre exemplu EXCEL WORLD si la trecerea cardului prin dreptul cititorului acesta il va scrie automat in aplicatie.

Pachetul include:

1 x Cititor USB de carduri

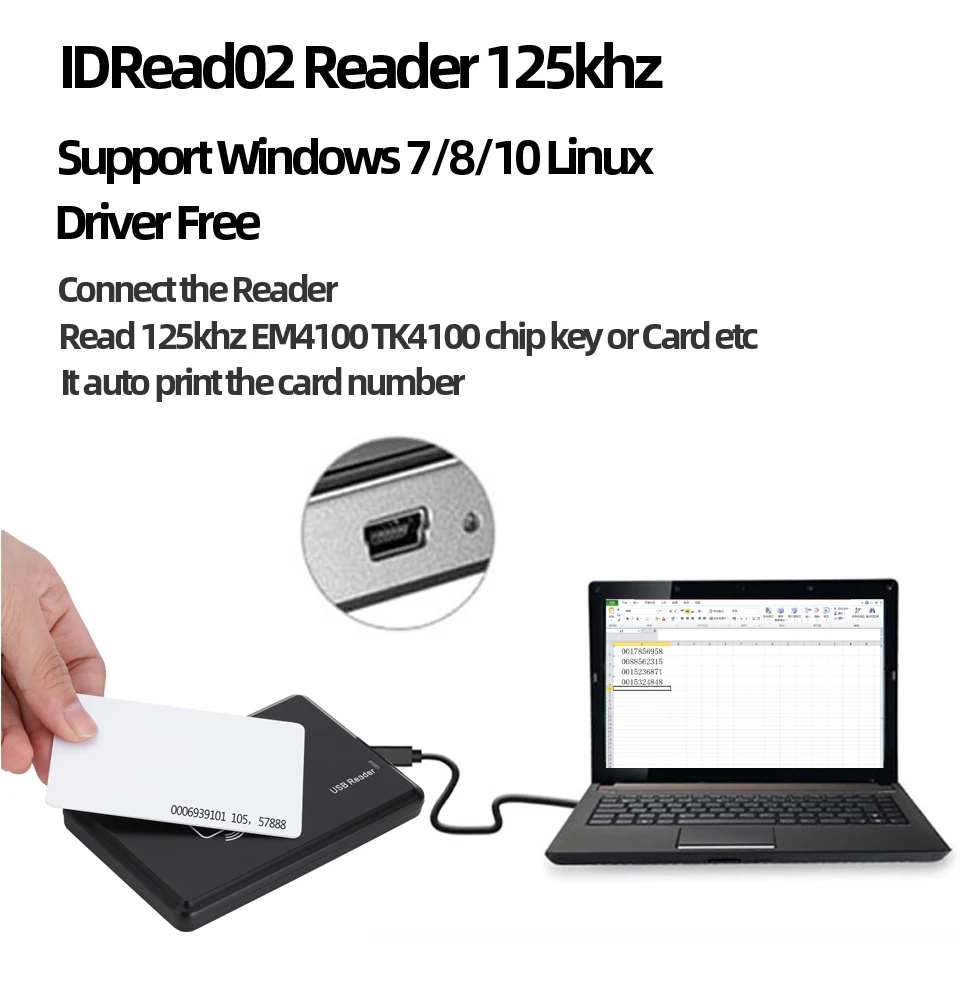

IDRead02 RFID Reader 125khz

The ID card reader is a 125kHz driverless which read ID card reader. When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .

Features:

*USB Plug and Play.
*0-8cm Reading Distance.
*Win8/7/XP/Android Supported.
*EM4100/TK4100 Card Supported.
*OTG Phone Connection.
*Built-in buzzer and LED for identification.

About Use:

1. Connect with computer through the USB cable inside.
2. Open notepad or a word document.
3. Put card on the top of the reader.
4. The document will output card number automatically.

Specifications:

Frequency: 125kHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For EM4100, TK4100 etc.
Protocol: 14443A
Supporting System: Windows1087XP982000CEMENTLIUNXVista

ICRead02 RFID Reader 13.56mhz

This item is a RFID 13.56MHz IC reader, which is widely used for RFID radio frequency identification system and project.
The item is driverless, When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .

Features:

*USB Plug and Play.
*0-8cm Reading Distance.
*Win8/7/XP/Android Supported.
*S50/S70 Card Supported.
*OTG Phone Connection.
*Built-in buzzer and LED for identification.

About Use:

1. Connect with computer through the USB cable inside.
2. Open notepad or a word document.
3. Put card on the top of the reader.
4. The document will output card number automatically.

Specifications:

Frequency: 13.56MHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For Mifare S50, S70
Protocol: 14443A
Supporting System: Windows1087XP982000CEMENTLIUNXVista etc.
